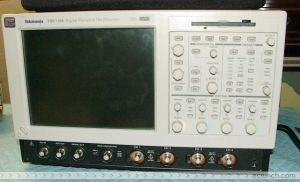

Tektronix TDS7104 Oscilloscope

The Tektronix TDS7104 is a high-performance digital phosphor oscilloscope (DPO) designed for advanced signal integrity and debugging applications. It features a 1 GHz bandwidth and a 2.5 GS/s real-time sample rate, making it suitable for analyzing high-speed signals in various fields, including RF and telecommunications.

Key Features

• Bandwidth: 1 GHz
• Sample Rate: 2.5 GS/s
• Channels: 4
• Memory Depth: Up to 32 Megasamples
• Waveform Capture Rate: >400,000 waveforms per second
• Trigger System: Advanced triggering capabilities including serial pattern triggering and clock recovery
• Connectivity: Open Microsoft Windows environment, USB, LAN, and SVGA video port for dual-monitor display mode

Capabilities

• Signal Acquisition: High-speed signal acquisition with exceptional delta-time accuracy for critical timing measurements
• Analysis: Advanced analysis capabilities including parametric measurements, math functions, and spectral analysis
• Triggering: Comprehensive triggering options including internal and external triggers, with sensitivity down to 0.35 div from DC to 50 MHz
• Probing: Compatible with a wide range of Tektronix probes and accessories for high-performance signal acquisition

Applications

• RF and Telecommunications: Suitable for analyzing high-speed RF signals and serial communications signals
• Signal Integrity: Ideal for verifying and characterizing sophisticated electronic designs
• Debugging: Advanced triggering and analysis capabilities for isolating and debugging complex signal issues
