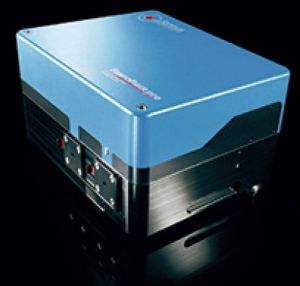

Toptica FemtoFiber Pro NIR
The Toptica FemtoFiber Pro NIR is an advanced optical fiber laser system offering unique features for scientific and industrial applications.
Technical Specifications
The system operates with two main wavelengths:
- 780 nm with output power exceeding 140 mW
- 1560 nm with output power exceeding 350 mW
Main Features
The equipment incorporates a SAM mode-locked ring oscillator, a core-pumped fiber amplifier, and optical pulse compression, all integrated into a single compact cabinet.
Generation System
The laser uses a PPLN (Periodically Poled Lithium Niobate) crystal for single-pass second harmonic generation, allowing switching between the two wavelength outputs.
Performance
- Pulse width less than 100 fs
- Smooth pulse shape
- Typical spectral width of 10-15 nm
- Self-optimization system for constant maximum power adjustment
Special Option
There is a 1 ps variant that uses a different crystal, generating near transform-limited rectangular pulses with spectral width in the range of a few nanometers.
EMU - Usage
To use this multi-user equipment (EMU), first contact:
Basic information about usage, intended application, training and scheduling will be discussed.
